Whether for you - or your client,
you measure, we quote, you assemble.
We make it easy for the you the customer to get exactly what you need - when you need it.
We provide the crane hoist and kitset - and you provide the beam. Simple. We can start doing our bit with just some basic information from you.
We provide the crane hoist and kitset - and you provide the beam. Simple. We can start doing our bit with just some basic information from you.
.
It works like this ...
Once you have the parameters of your building and know the application of your new crane, then it's easy.
We supply the crane hoist, components, and manufacturing drawings in the form of a kitset. You then fabricate the beam to the supplied design.
Then simply assemble the crane.
This crane hoist, kitset design and build option, gives you the control to meet your budget and timeframe. The transport costs savings alone can be substantial.
We supply the crane hoist, components, and manufacturing drawings in the form of a kitset. You then fabricate the beam to the supplied design.
Then simply assemble the crane.
This crane hoist, kitset design and build option, gives you the control to meet your budget and timeframe. The transport costs savings alone can be substantial.
Please note - the hoist (grey) and crane kitset (yellow) are supplied
( hover mouse over image)
Please note - the girder / beam (shown in yellow) is not supplied

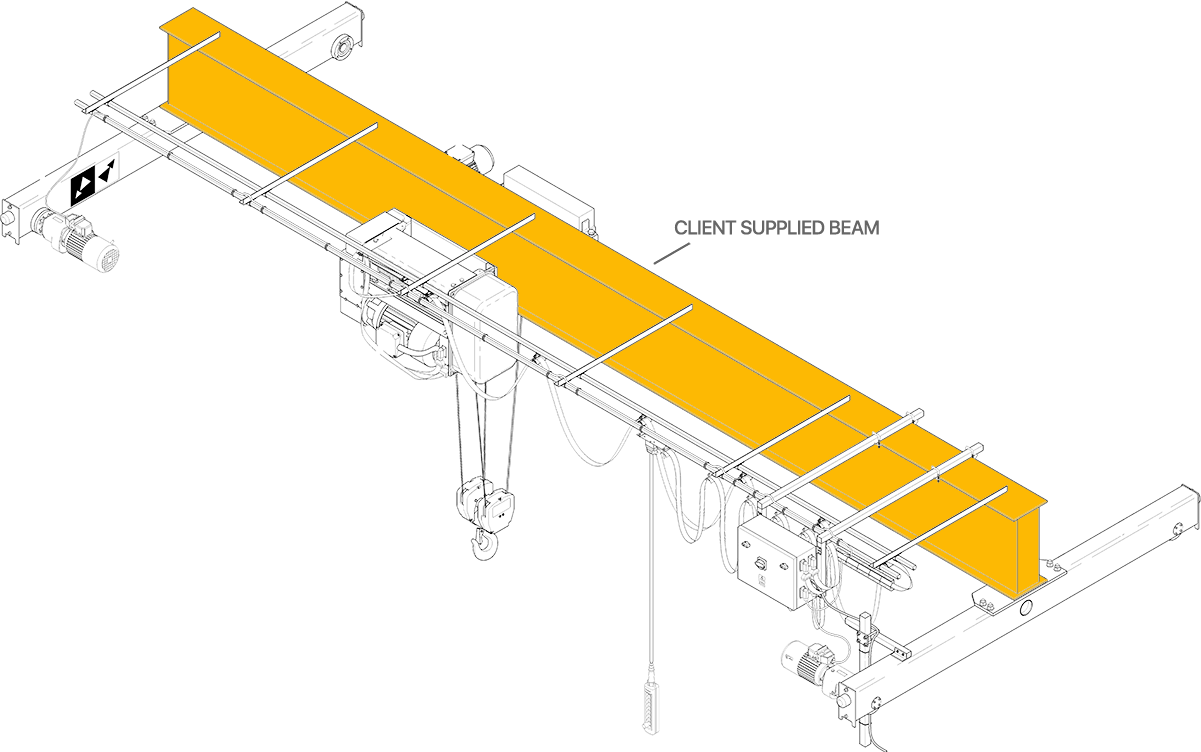

Example of a single girder
crane configuration
crane configuration
Chain Hoist (low headroom)
Example of single beam hoist - ZX6
Please note - the hoist (grey) and crane kitset (yellow) are supplied
( hover mouse over image)
Please note - the girder / beam (shown in yellow) is not supplied

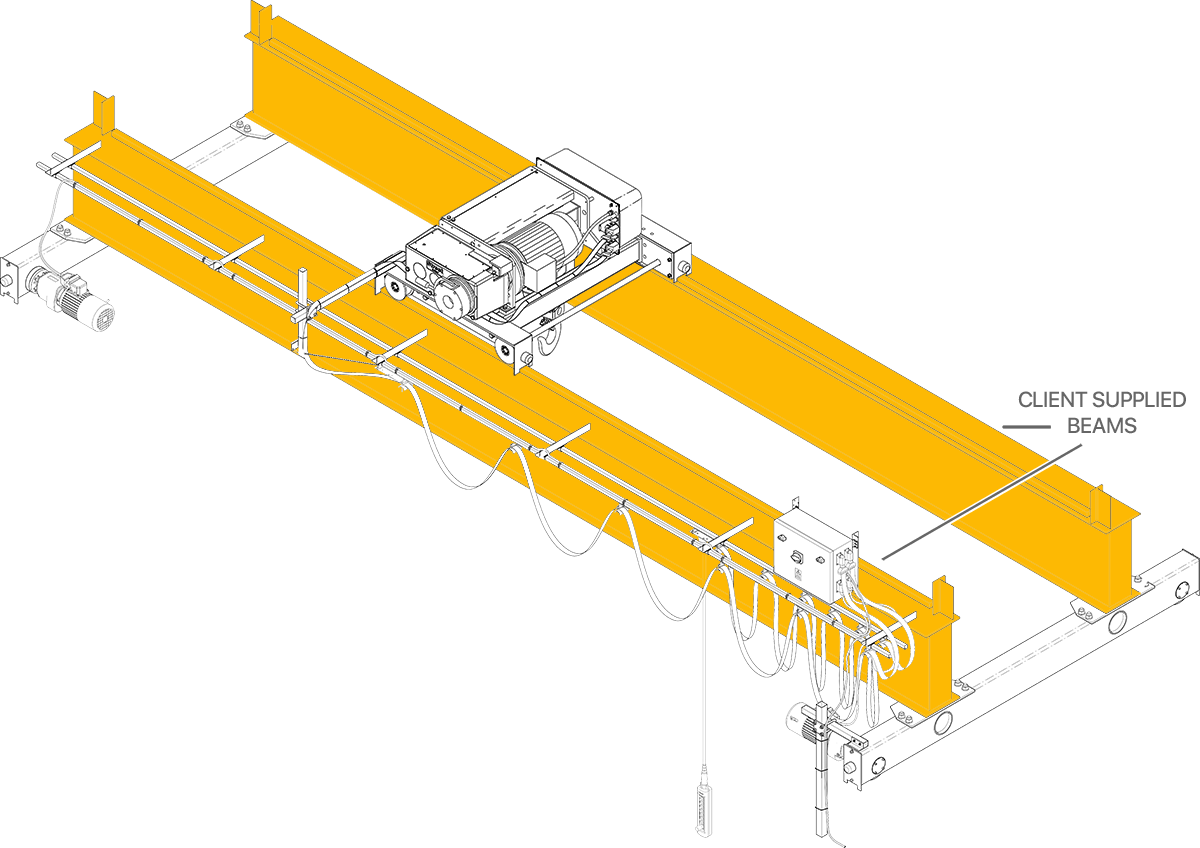

Example of a double girder
crane configuration
crane configuration

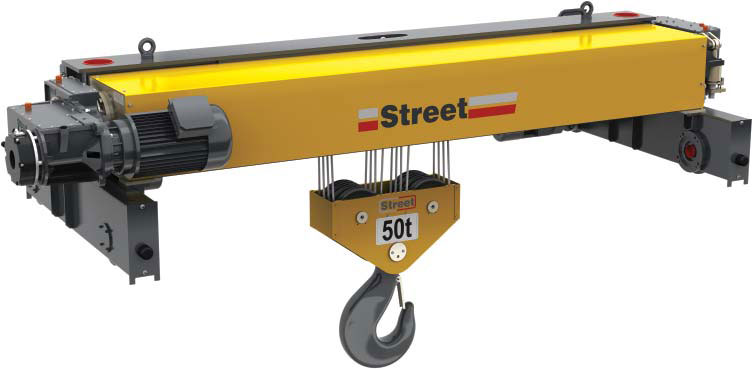

Example of double beam hoist - ZX84
Crane kitset contents / description
The following kitset components are delivered securely packaged - ready to assemble.
- Hoist unit
- End carriages including; wheels and travel drives
- Electrical panel and mounting brackets.
- Cross travel electrical cabling system wired for “plug and play”
- Towing arm for long travel power feed (power feed also provided if required)
- Hoist unit
- Plug-in roving pendant, ready for remote control upon request
- Design verification by third party
- Manufacturing drawings for beam and assembly
- Manual, certificates and assembly instructions
Spoilt for choice -
the ZX series hoists
the ZX series hoists
The ZX series hoists are specifically designed to meet the requirements for precision lifting and moving.
The innovative ZX design is the result of a rigorous analysis of customers future expectations. Together with the application of the most advanced crane technology, and incorporating 70 years experience in crane manufacturing. This provides a new level of performance and productivity. This hoist is designed to meet the needs of industry well into the future, providing an excellent solution in terms of the price / performance ratio.
Excellent quality and outstanding safety in design are the hallmarks of Street Crane products. ZX hoists incorporate a series of significant safety features. The level of safety on standard models is such that a number of basic components (the failure of which on competitor hoists could be catastrophic) fail to safe on the ZX. For example, the hoist brake operates on the second hoist reduction shaft, giving fail to safe on components in the motor and first reduction line. The hoist motor can even be completely removed without releasing the load.
All components are manufactured to the highest quality standards in a modern purpose built plant using advanced production methods.
The innovative ZX design is the result of a rigorous analysis of customers future expectations. Together with the application of the most advanced crane technology, and incorporating 70 years experience in crane manufacturing. This provides a new level of performance and productivity. This hoist is designed to meet the needs of industry well into the future, providing an excellent solution in terms of the price / performance ratio.
Excellent quality and outstanding safety in design are the hallmarks of Street Crane products. ZX hoists incorporate a series of significant safety features. The level of safety on standard models is such that a number of basic components (the failure of which on competitor hoists could be catastrophic) fail to safe on the ZX. For example, the hoist brake operates on the second hoist reduction shaft, giving fail to safe on components in the motor and first reduction line. The hoist motor can even be completely removed without releasing the load.
All components are manufactured to the highest quality standards in a modern purpose built plant using advanced production methods.

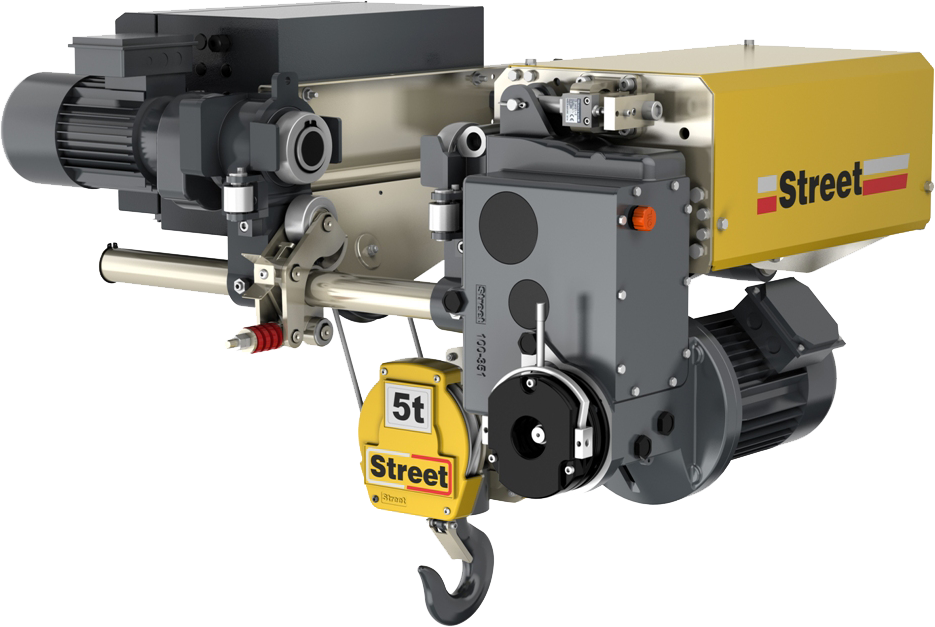

ZX6 Hoist (low headroom)
ZX6 Hoist (standard headroom)

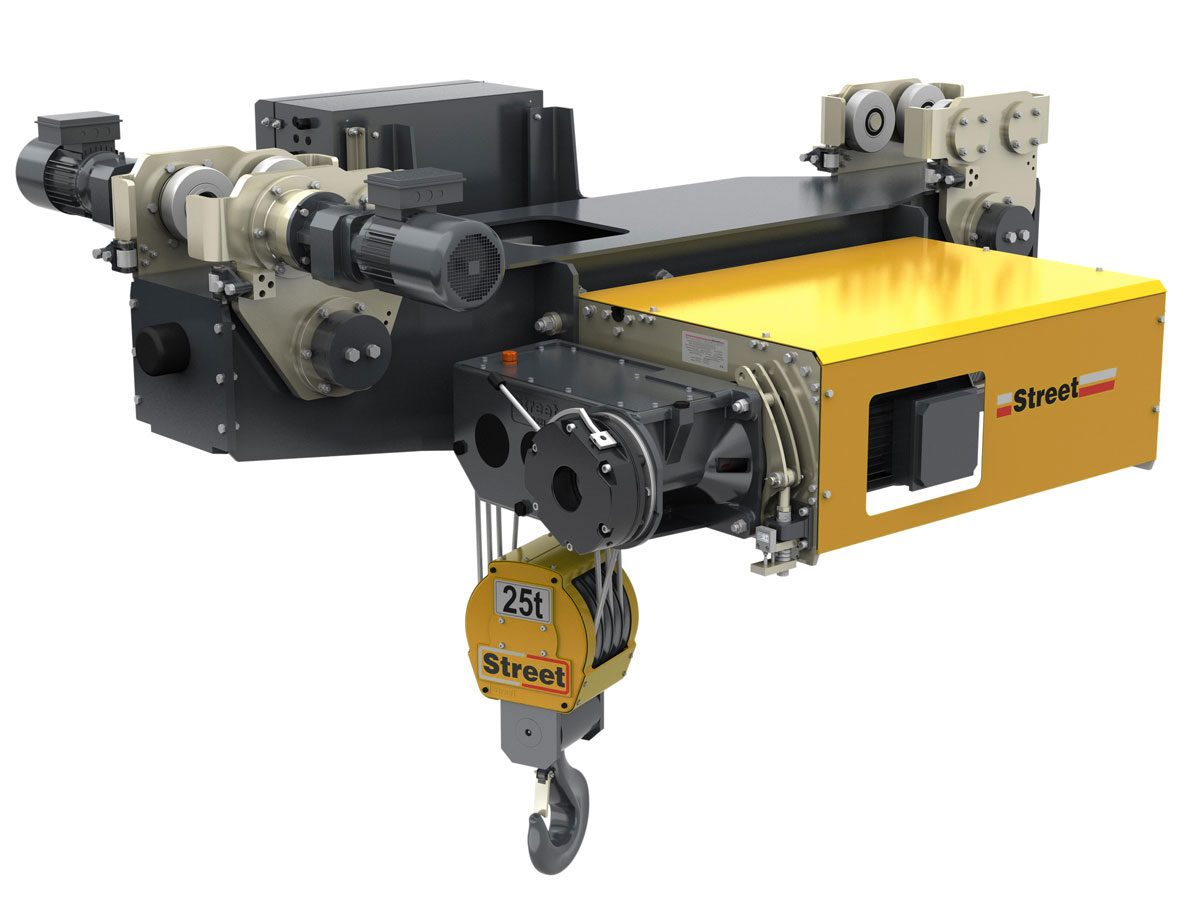

ZX10 Hoist (crab configuration)
LX Chain Hoists

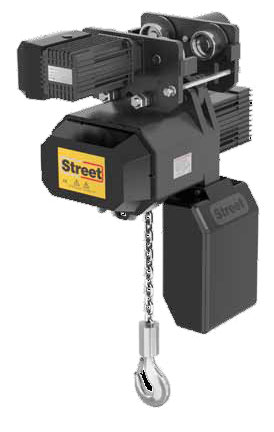

Chain Hoist (low headroom)
LX chain hoists are ideal for installations requiring only manual operation of smaller capacity hoisting applications.

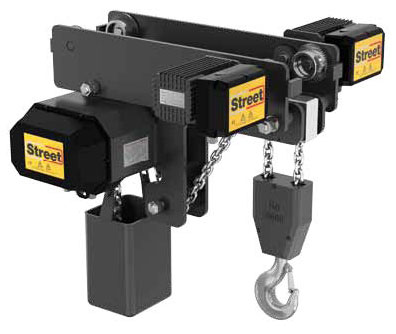

Chain Hoist (standard headroom)
Let's start with a few questions ...
With a few details from you our team can put together the quote and information you need to get the right crane for your application.
Sample schematic of crane installation
Twin single girder crane installation
